|Minimum Order Quantity:||1 set|
|Packaging Details:||Standard export wooden case with operation manual and video inside.|
|Delivery Time:||Shipped in 15 days after payment|
|Payment Terms:||D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||200 sets per month|
|Testing range:||W450x D no-limit x H300mm||Max testing torsion:||2N.m,5N.m,10N.m(optional )|
|Min. display torsion:||0.01N.m||Rotation angle:||No limit|
|Testing speed range:||1~72000/min||Size:||W420×D320×H1150mm|
|Weight:||65kg||Power supply:||1∮,AC220V,5A or specify by customer|

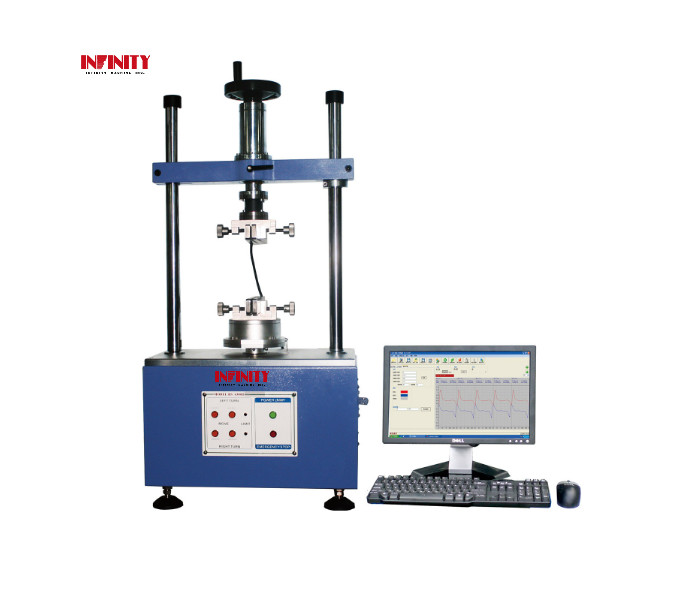

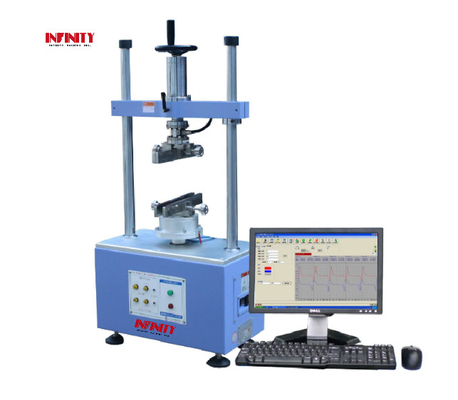

Electronic Product Torsion Testing Machine Creat Curve Record Data 0.01 N.m
This torsion tester is suitable for the torsion testing for all kinds of electronic products and the hinges. Can measure the torsion of positive rotation and reverse rotation, and have the software to create the curves of testing, and can record the testing data, the curves.
1. The testing conditions are set by computer (the angle testing range, the original point of stroke, testing speed, testing cycles, the pause time,
to hold the time for the testing and so on)
2. Can print and save the testing data and curves (Torsion vs angle, Torsion damping curve)
3. The title, products spec, testing date, operator, file No in the testing report are editable.
4. The testing chart is Microsoft Access editing format, input the testing data automatically and can save or print.
5. It can automatically judge the pass or failure for the testing according to the set upper and lower limit value, and then create the current testing
data, such as the Max torsion, Min torsion, Ave. value, ETC, and create the corresponding curves.
6. The torsion damping curve and report: to display torsion value changing vs the testing cycles increase.
7. To adopt the Panasonic servo motor for the driving, has the 2500R high pulse encoder, can make sure the right location precisely, and low
noise ,higher torque, can satisfy long time running .
8. Adopt the special auto-centering device, can auto correct and reduce the tolerance when the specimen isn’t installing at the centre of the axis
in the testing.
|The testing range||W450x D no-limit x H300mm|
|Max testing torsion||2N.m,5N.m,10N.m(optional )|
|Min. display torsion||0.01N.m|
|Min. Angle display||0.010|
|Rotation angle||No limit|
|Testing speed range||1~72000/min(Meet Amazon requirement :1~2sec reach 1.5N.m)|
|Power supply||1∮,AC220V,5A or specify by customer|
Torsion Testing Machine 3D Drawing:
1. Operation language: Chinese, English.
2. Force unit: kgf.cm, N.m, Lbf.in, N.mm can be switched,
3. Testing : Allow to call, modify, save. Every test can save as the new doc name, can save every data automatically to avoid the lost of the data by
power-cutting, can set the forward and backward rotation speed, testing angle, testing cycles and time holding, upper and lower limit setting.
The testing data table(report) can be created automatically, it includes the max value, Min value, Ave. value, auto-judge for pass or failure. the report can be converted to be PDF or EXCEL format.
The curves can be printed, and support to optional printing by selecting any curves for printing. And can be converted to be PDF or EXCEL format.
Can create the life-span damping curve, the curve can be converted to be PDF or EXCEL format.
