| สถานที่กำเนิด: | ผลิตในประเทศจีน |
| ชื่อแบรนด์: | Infinity Machine Inc. |
| ได้รับการรับรอง: | ISO |
| หมายเลขรุ่น: | ซีรีย์ IE60 |
| จำนวนสั่งซื้อขั้นต่ำ: | 1 |
|---|---|
| ราคา: | Negotiate |
| รายละเอียดการบรรจุ: | แผ่นใส+ฟองน้ำ+กล่องไม้ |
| เวลาการส่งมอบ: | 20-30 วันหลังจากได้รับการยืนยันการสั่งซื้อ |
| เงื่อนไขการชำระเงิน: | ที/ที |
| สามารถในการผลิต: | 200Sets ต่อเดือน |
| ชื่อสินค้า: | ห้องทดสอบ UV | แบบอย่าง: | ซีรีย์ IE60 |
|---|---|---|---|
| ช่วงอุณหภูมิ: | RT+20℃~70℃ | ช่วงความชื้น: | ≥90%RH |
| มาตรฐานที่ใช้บังคับ: | ISO 4892-3、 ISO 11507; ASTM D4329、 D499、 D4587、 D5208、 G154、 G53;; | คุณสมบัติ: | การทํางานอัตโนมัติของการควบคุมอุปกรณ์, วงจรการทดสอบอัตโนมัติ, ประหยัดแรงงาน, ปรับปรุงประสิทธิภาพการท |
| โครงสร้างกล่อง: | กล่องในร่มและกลางแจ้ง: ใช้สแตนเลส SUS304 # ในกล่องในร่มและกลางแจ้ง | ผู้ถือตัวอย่าง: | วิชันเพลทฐานเฟรมแบบอะลูมิเนียม 24 ชิ้น |
| พลัง: | อิเล็กทรอนิกส์ | การรับประกัน: | 1 ปี |

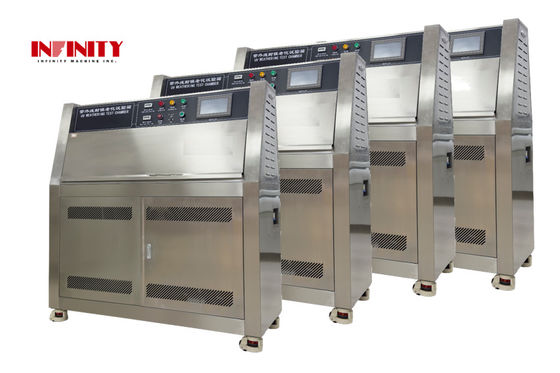

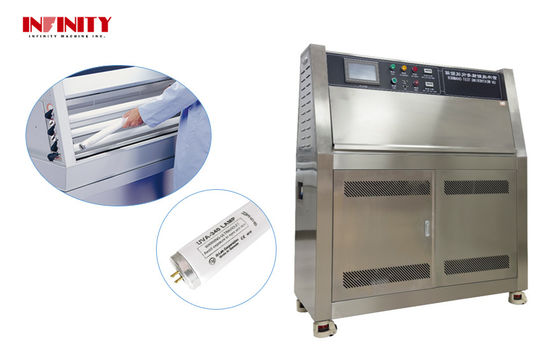

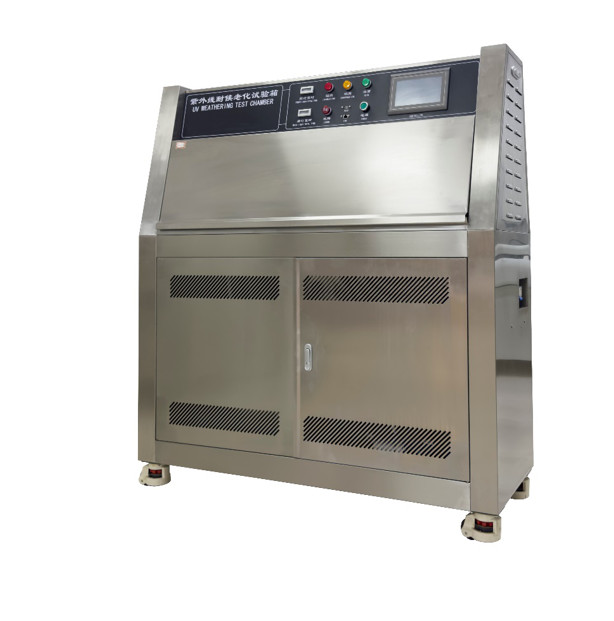

UV weathering test chamber uses fluorescent ultraviolet lamps that best simulate the UV spectrum of sunlight, and combines temperature control and humidity supply devices to compare the high temperature, high humidity, condensation, dark rain cycle and other factors that cause discoloration, brightness, strength decline, cracking, peeling, pulverization, oxidation and other damage to the material in sunlight (UV segment). At the same time, through the synergistic effect between ultraviolet light and moisture, the single light resistance or single moisture resistance of the material is weakened or failed, so it is widely used to evaluate the weather resistance of the material.
| Parameter | IE6002 | IE6002A |
|---|---|---|
| Temperature range | RT+20℃~70℃ | |
| Humidity range | ≥90%RH | |
| Temperature fluctuation | ±0.5℃ | |
| Temperature uniformity | ≦1.0℃ | |
| Center distance inside the lamp | 70mm | |
| Distance between specimen and lamp center | 50±3mm | |

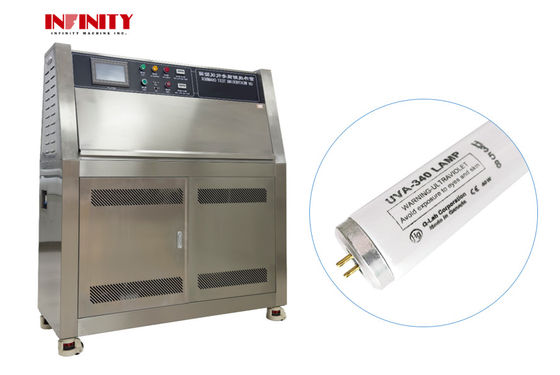

| Modulator tube | UVA-340 L=1200/40W, 8pcs | UVB-313 L=1200/40W, 8pcs |
| Irradiance | Adjustable within 1.2W/m² | Adjustable within 1.0W/m² |
| Ultraviolet wavelength | 315-400nm | 280-315nm |
| Effective irradiation region | 900*210mm | |
| Irradiated blackboard temperature | 50℃~70℃ | |
| Internal dimension: W*H*D (mm) | 1140*400*390 | |
| Outside box size: W*D*H (mm) | 1300*500*1360 | |
| Box structure | Indoor and outdoor boxes: SUS304# stainless steel | |
| Sample holder | Aluminum frame type base frame vision plate, 24pcs | |
| Standard sample size | 75*290mm | |
| Safety protection device | Leakage circuit breaker control circuit, overload, short circuit alarm, over temperature alarm, water shortage protection | |
| Power supply | AC220V, 50Hz, 5KW | |
UV Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
